SPECIFICATIONS

Detection Angle: 110

Detection Range: 5

High-concerned chemical: None

Smart home platform: Tuya

There are 5 types:

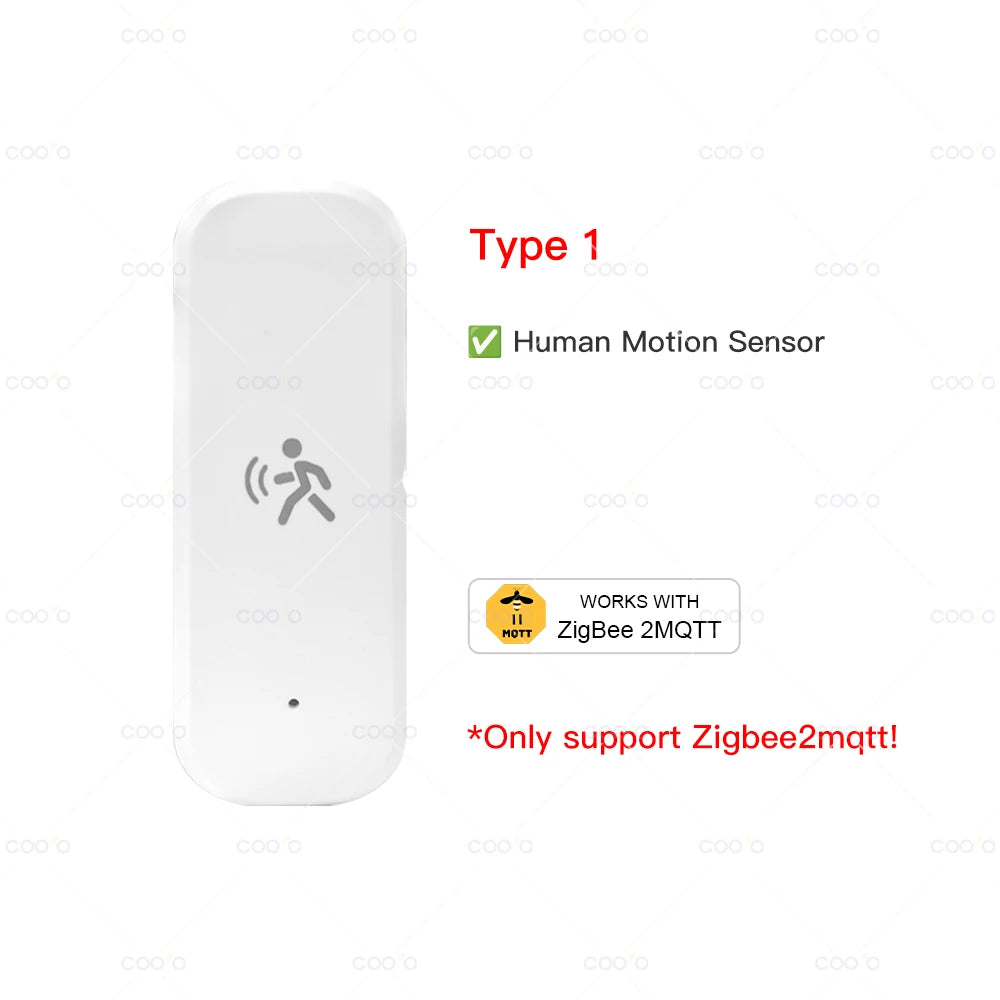

1, Only support Zigbee2mqtt; Only Motion Sensor

2, Only support Zigbee2mqtt; Motion Sensor+Luminance Detection

3, Only support Zigbee2mqtt; Motion Sensor+Luminance+Temperature+Humidity Detection

4, Support Tuya/smart life App, must be use zigbee gateway; Motion Sensor+Luminance Detection

5, Support Tuya/smart life App, must be use zigbee gateway; Motion Sensor+Luminance+Temperature+Humidity Detection

Specification

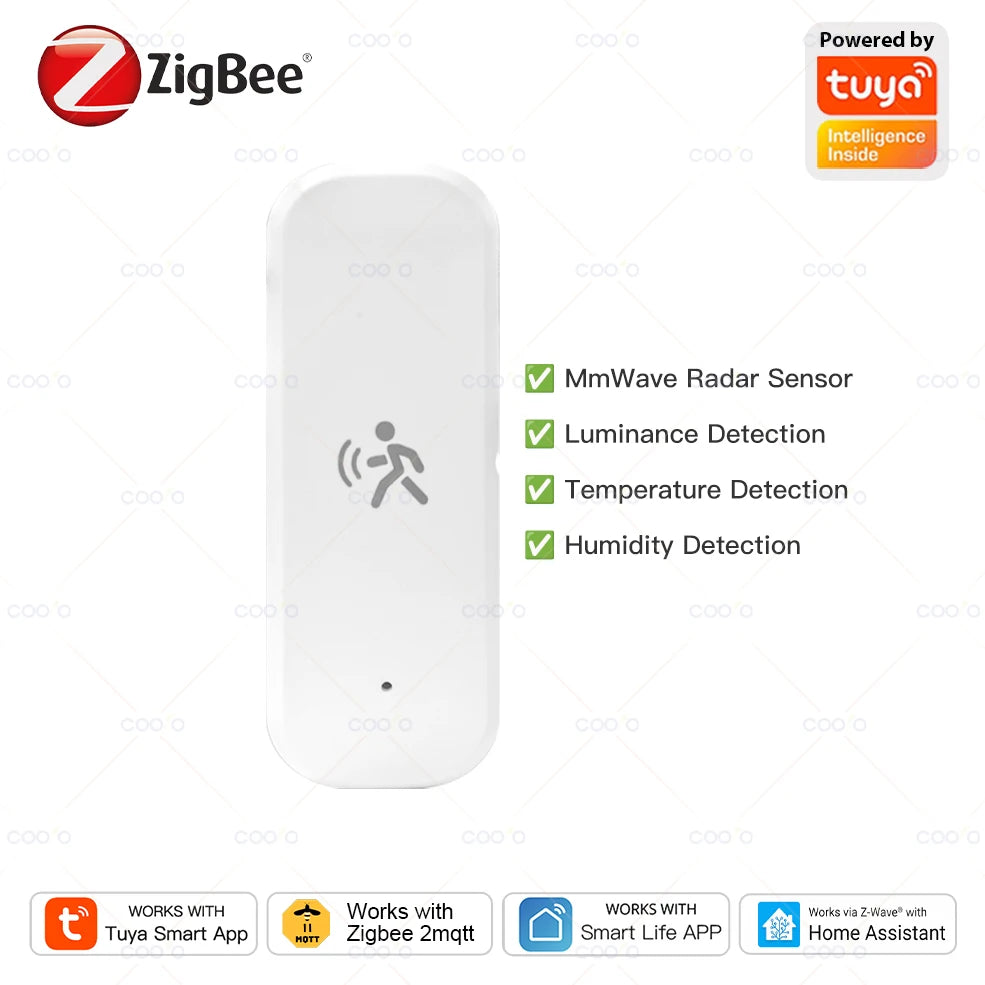

Item: Smart Human Motion Sensor

Working Voltage: DC3V

Wireless Protocol: Zigbee3.0 (need zigbee gateway)

MW Frequency: 10.525GHz

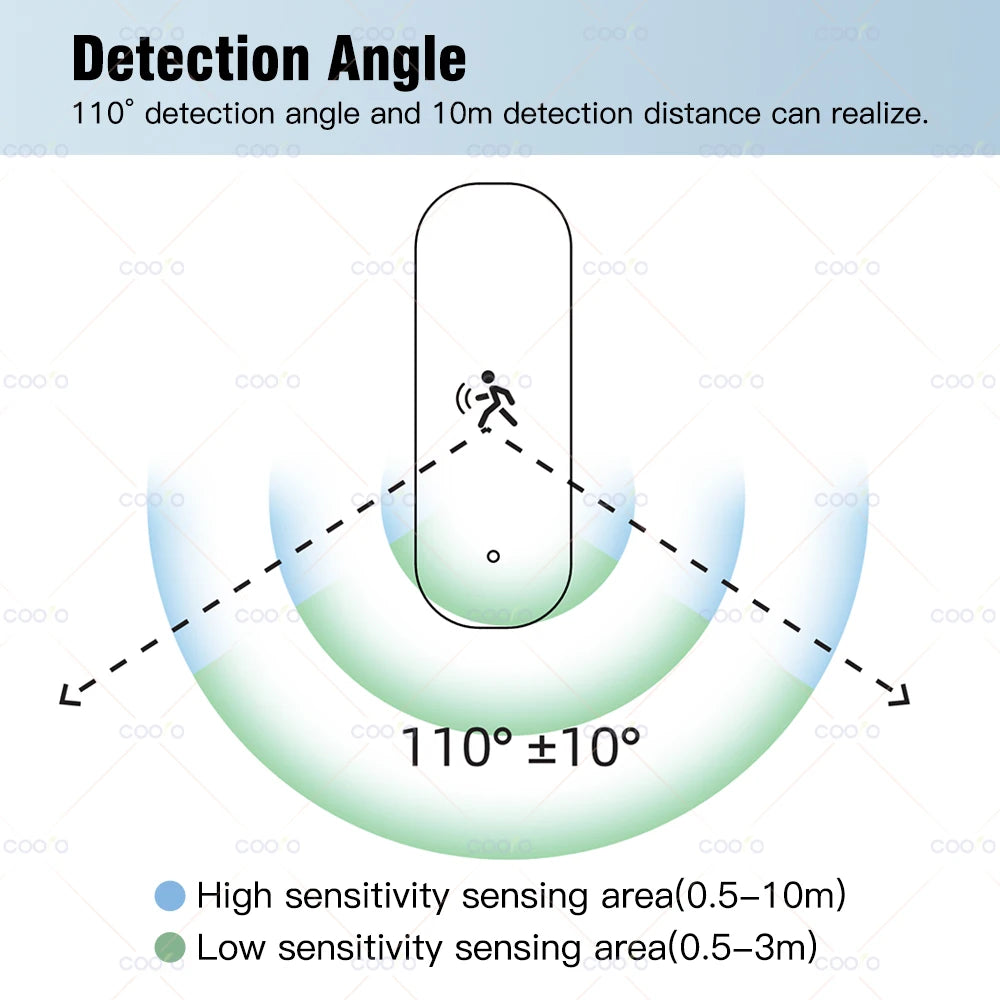

Detection Angle: 110°±10°

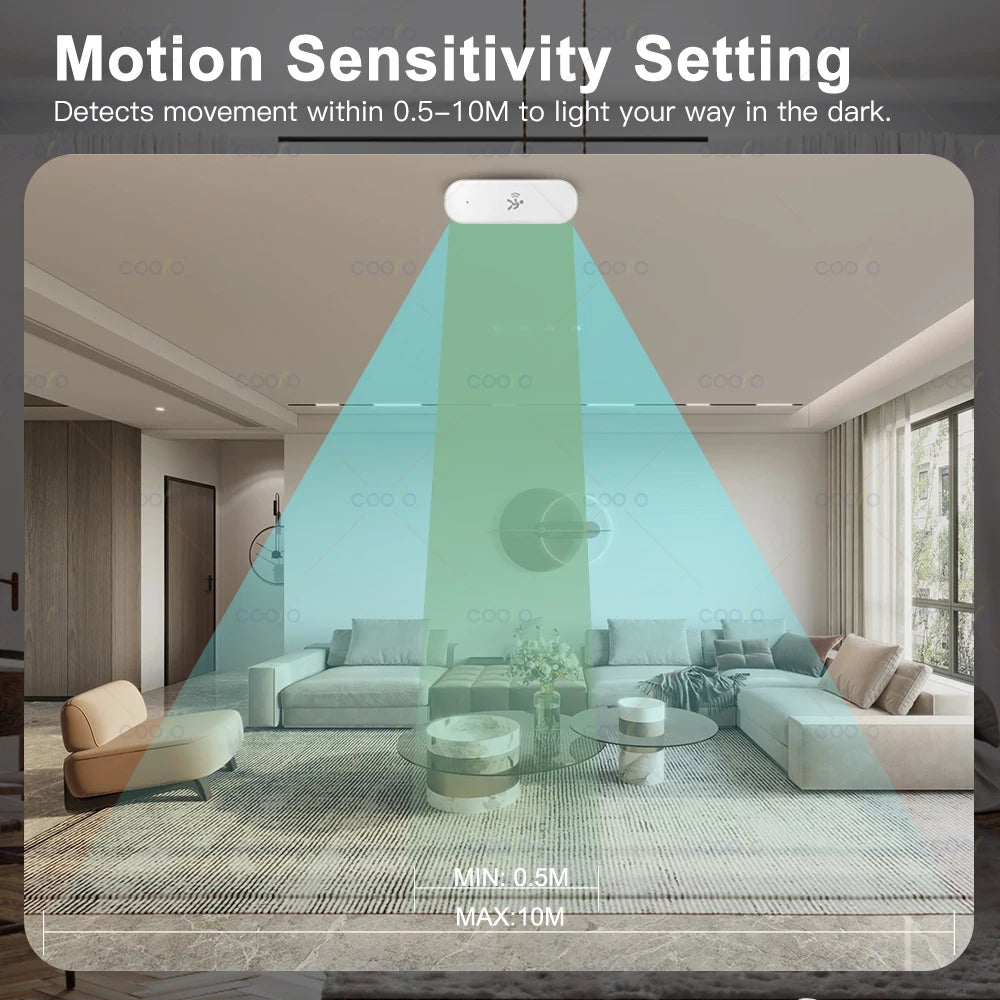

Detection Distance: 0.5~10meter(z axis)

Luminance Meter: 0~3000Lux

Temperature Resolution: 0.1°℃

Humidity Resolution: 1%

Temperature Measurement Accuracy: ±0.3°C

Humidity Measurement Accuracy: ±3%

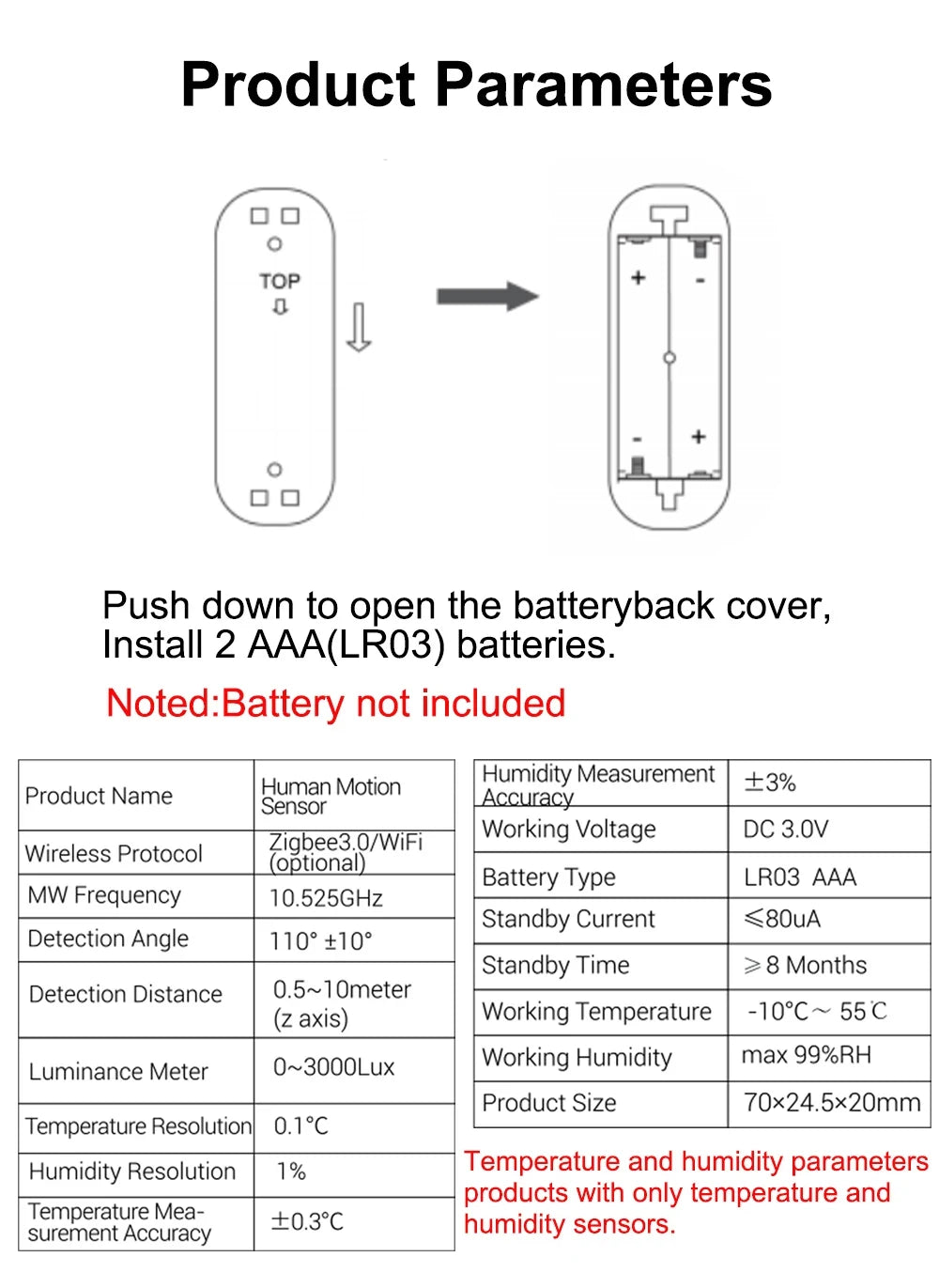

Battery Type: 2pcs LR03 AAA(not included)

Standby Current: <80uA

Standby Time: >8 Months

Working Temperature: -10°C~55’℃

Working Humidity: max99%RH

Product Size: 70x24.5x20mm

Package Content

1* Human Motion sensor
1* Double-sided tape

1* Pin

1* User manual
